Used Refurbished Volvo EC210 Crawler Excavators Manufactured In Sweden

The Volvo EC210 is a versatile and reliable medium-duty hydraulic excavator designed for a range of construction, earthmoving, and utility applications. It is known for its durability, operator comfort, and fuel efficiency.

Volvo EC210 Specifications

Engine

• Model: Volvo D6E
• Type: 6-cylinder, water-cooled, turbocharged diesel engine
• Displacement: 5.7 liters (347 cubic inches)
• Gross Power: 123 kW (165 hp) at 1,800 rpm
• Net Power: 118 kW (158 hp) at 1,800 rpm
• Emission Compliance: Tier 3 / Stage IIIA (varies by region)

Operating Weight

• Weight Range: 20,500–22,000 kg (45,195–48,501 lbs)

Dimensions

• Overall Length: 9,600 mm (378 in)
• Width (with standard tracks): 2,990 mm (117.7 in)
• Height (to top of cab): 2,860 mm (112.6 in)
• Tail Swing Radius: 2,850 mm (112.2 in)
• Ground Clearance: 470 mm (18.5 in)

Performance

• Maximum Digging Depth: 6,700 mm (22 ft)
• Maximum Reach: 9,970 mm (32.7 ft)
• Maximum Dumping Height: 6,650 mm (21.8 ft)
• Bucket Breakout Force: 15,500 kgf (152 kN)
• Arm Tearout Force: 11,800 kgf (116 kN)

Undercarriage

• Track Shoe Width: 600–900 mm (23.6–35.4 in), depending on configuration
• Track Length on Ground: 3,290 mm (129.5 in)
• Ground Pressure: 45 kPa (6.5 psi) with standard shoes

Hydraulic System

• Type: Variable displacement, load-sensing hydraulic system
• Main Pump Flow: 2 × 210 liters/min (55.5 gallons/min)
• Relief Pressure: 32.4 MPa (4,700 psi)

Fuel Tank

• Capacity: 350 liters (92.5 gallons)

Key Features

1. Reliable Power: Volvo D6E engine provides consistent performance and low fuel consumption.
2. Enhanced Operator Comfort: Spacious cab with ergonomic controls, excellent visibility, and advanced climate control.
3. Durable Build: Reinforced boom, arm, and undercarriage for extended service life.
4. Smooth Operation: Precise hydraulics ensure smooth and efficient digging, lifting, and grading.
5. Ease of Maintenance: Centralized service points and long service intervals reduce downtime.

Applications

• Construction: Roadwork, trenching, and grading.
• Earthmoving: Excavation, backfilling, and material handling.
• Utility Work: Water pipeline, drainage, and sewer installation.
• Quarrying: Handling aggregates and smaller-scale rock excavation.

Volvo EC210 Crawler Excavators

Refurbished Crawler Excavators

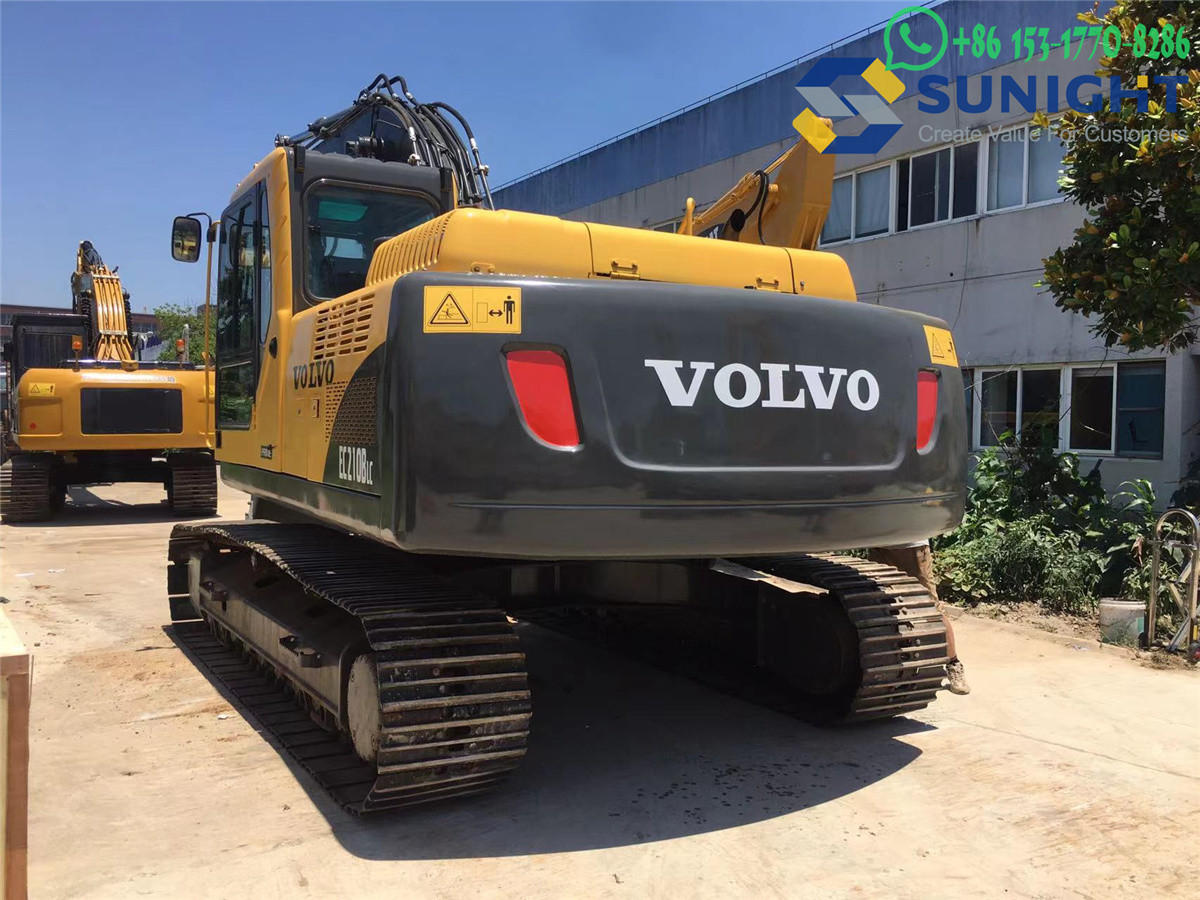

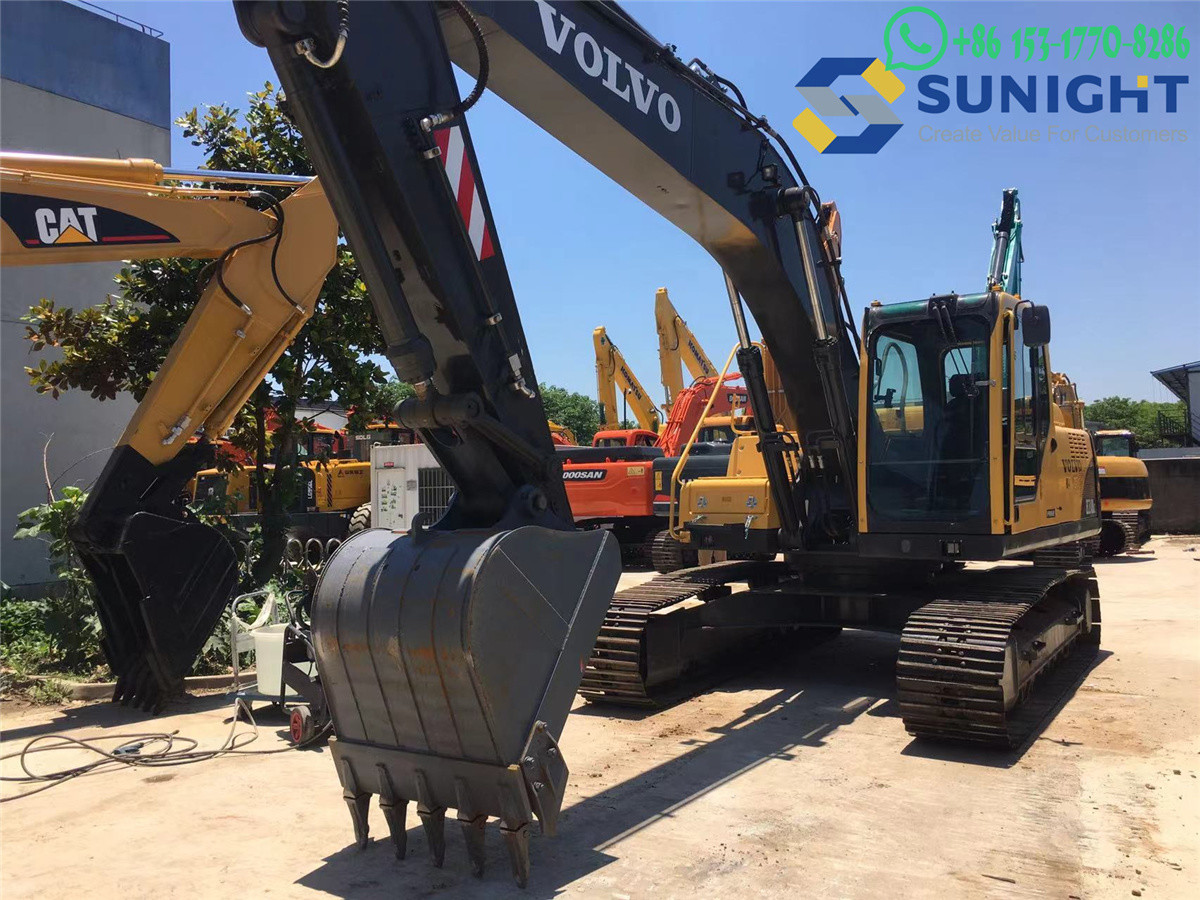

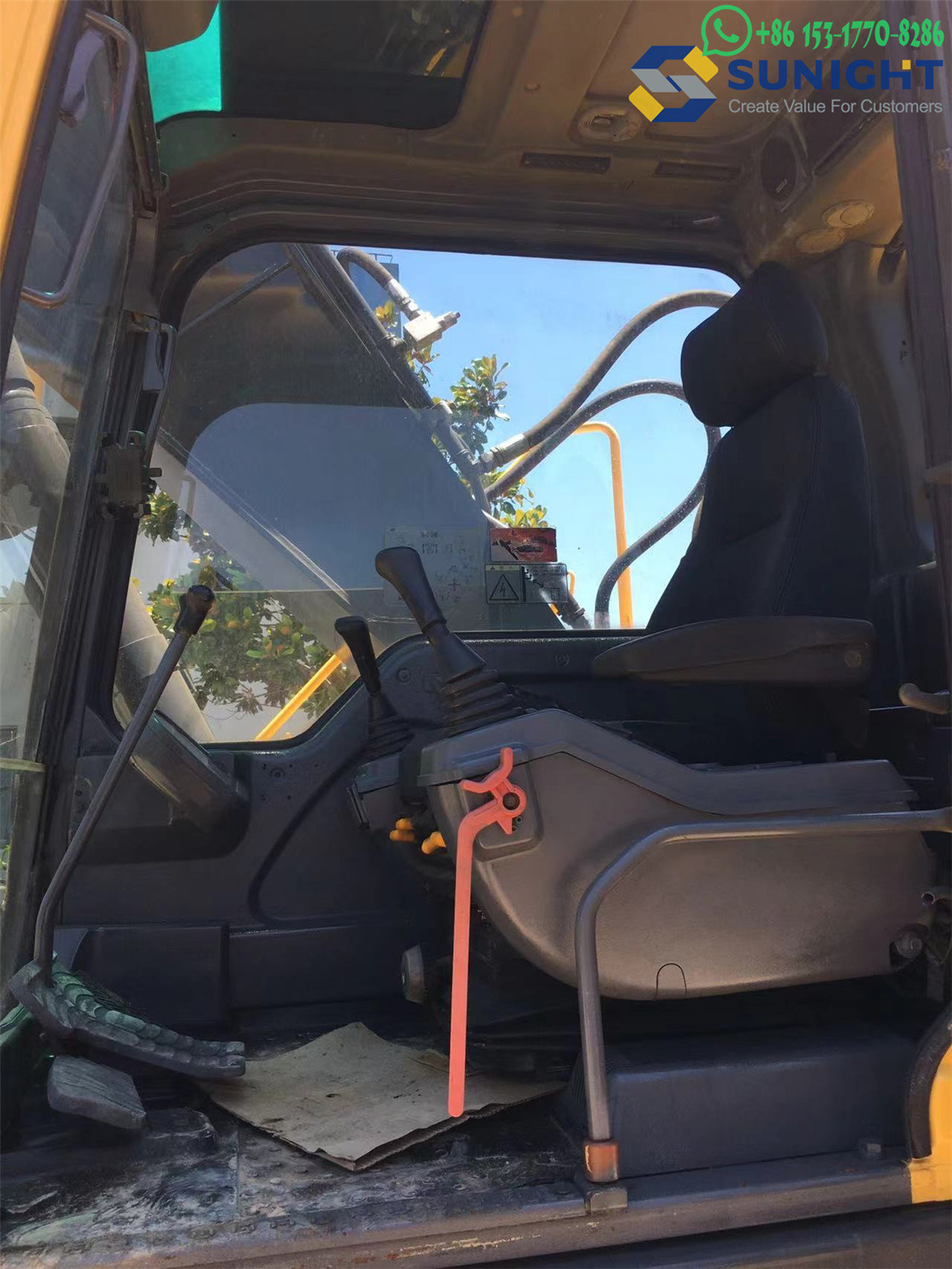

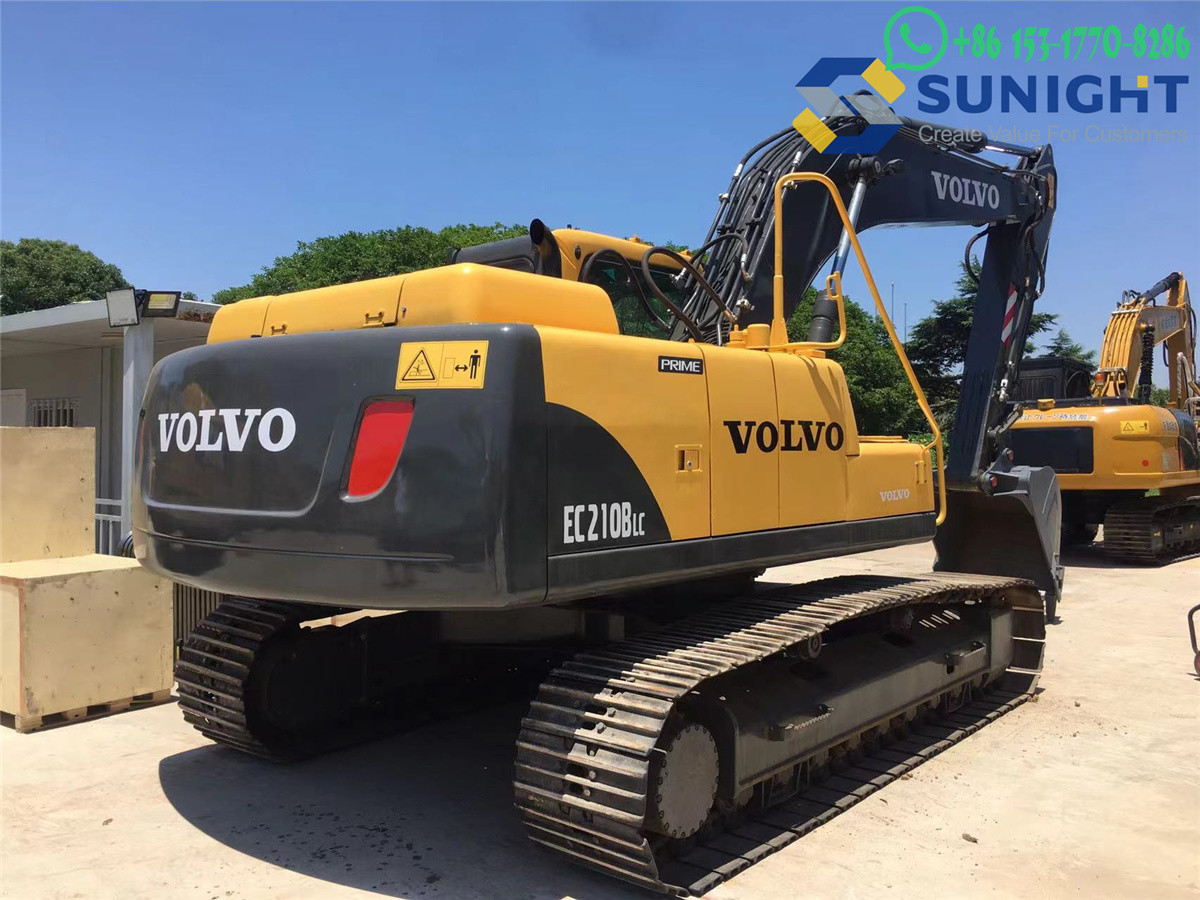

Used Refurbished Volvo EC210 Crawler Excavators Manufactured In Sweden Images
