Used Excavators CAT D6G Japan Original Bulldozers Engineering Machinery Shoveling And Soil Filling Equipment CAT D6G

The CAT D6G is a medium-sized bulldozer designed for a variety of applications, including construction, earthmoving, and agricultural work. Known for its reliability, durability, and ease of operation, the D6G is widely used in industries requiring versatile and efficient dozers.

CAT D6G Specifications

Engine

• Model: Caterpillar 3306
• Gross Power: 125-140 hp (93-104 kW), depending on the variant.
• Net Power: Approximately 125 hp (93 kW).
• Displacement: 10.5 liters (640 cubic inches).
• Fuel System: Direct injection.

Operating Weight

• Weight: Approximately 14,500–16,000 kg (31,967–35,274 lbs), depending on the configuration and attachments.

Dimensions

• Length (with blade): 5,000–5,700 mm (196–224 in).
• Width (blade width): 2,800–3,050 mm (110–120 in), depending on the blade type.
• Height: 3,000 mm (118 in) to the top of the cab.
• Track Gauge: 1,880 mm (74 in).
• Ground Clearance: Approximately 400 mm (15.7 in).

Blade

• Blade Type: Available with straight, semi-U, or full-U blades.
• Blade Width: 3,050 mm (120 in).
• Blade Capacity: 3.5–4.5 m³ (4.6–5.9 yd³), depending on the blade type.

Performance

• Maximum Speed (Forward): 9–10 km/h (5.6–6.2 mph).
• Maximum Speed (Reverse): 10–12 km/h (6.2–7.5 mph).
• Drawbar Pull: High traction capability for effective dozing and ripping operations.

Undercarriage

• Track Type: Sealed and lubricated tracks (SALT).
• Track Shoe Width: 510–560 mm (20–22 in).
• Track Length on Ground: 2,700–2,900 mm (106–114 in).
• Ground Pressure: Approximately 0.58 kg/cm² (8.2 psi), depending on configuration.

Hydraulics

• Pump Flow: 150–170 liters per minute (39.6–44.9 gpm).
• Hydraulic System Pressure: 18,000–20,000 kPa (2,610–2,900 psi).

Fuel Tank

• Capacity: 300 liters (79 gallons).

Features

1. Powerful Engine: The CAT 3306 engine provides reliable performance and efficient fuel consumption.
2. Operator Comfort: Features a spacious and ergonomic cab with excellent visibility and easy-to-use controls.
3. Durable Design: Built for rugged environments with a robust undercarriage and high-quality components to withstand wear and tear.
4. Ease of Maintenance: Simplified access to engine components and hydraulic systems for quicker maintenance.
5. Versatility: Offers multiple blade options and attachments, such as rippers, for various applications.
6. High Traction: Excellent traction and drawbar pull for effective performance on different terrains.

Applications

• Construction: Ideal for grading, leveling, and site preparation.
• Agriculture: Used for land clearing, terracing, and farm infrastructure development.
• Mining: Suitable for overburden removal and material handling.
• Forestry: Useful for logging operations and trail building.

Used Excavators CAT D6G

Soil Filling Used Excavators

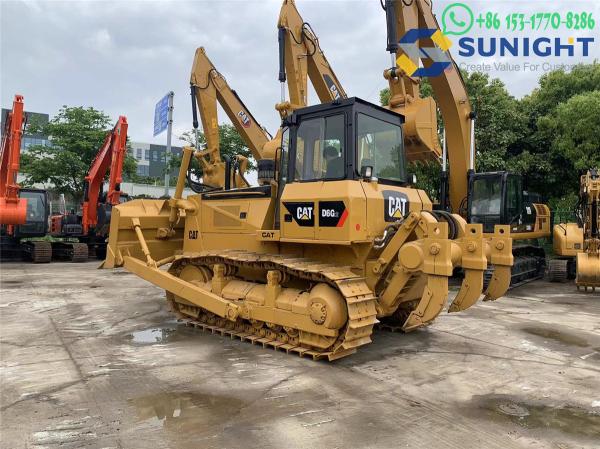

Used Excavators CAT D6G Japan Original Bulldozers Engineering Machinery Shoveling And Soil Filling Equipment CAT D6G Images
